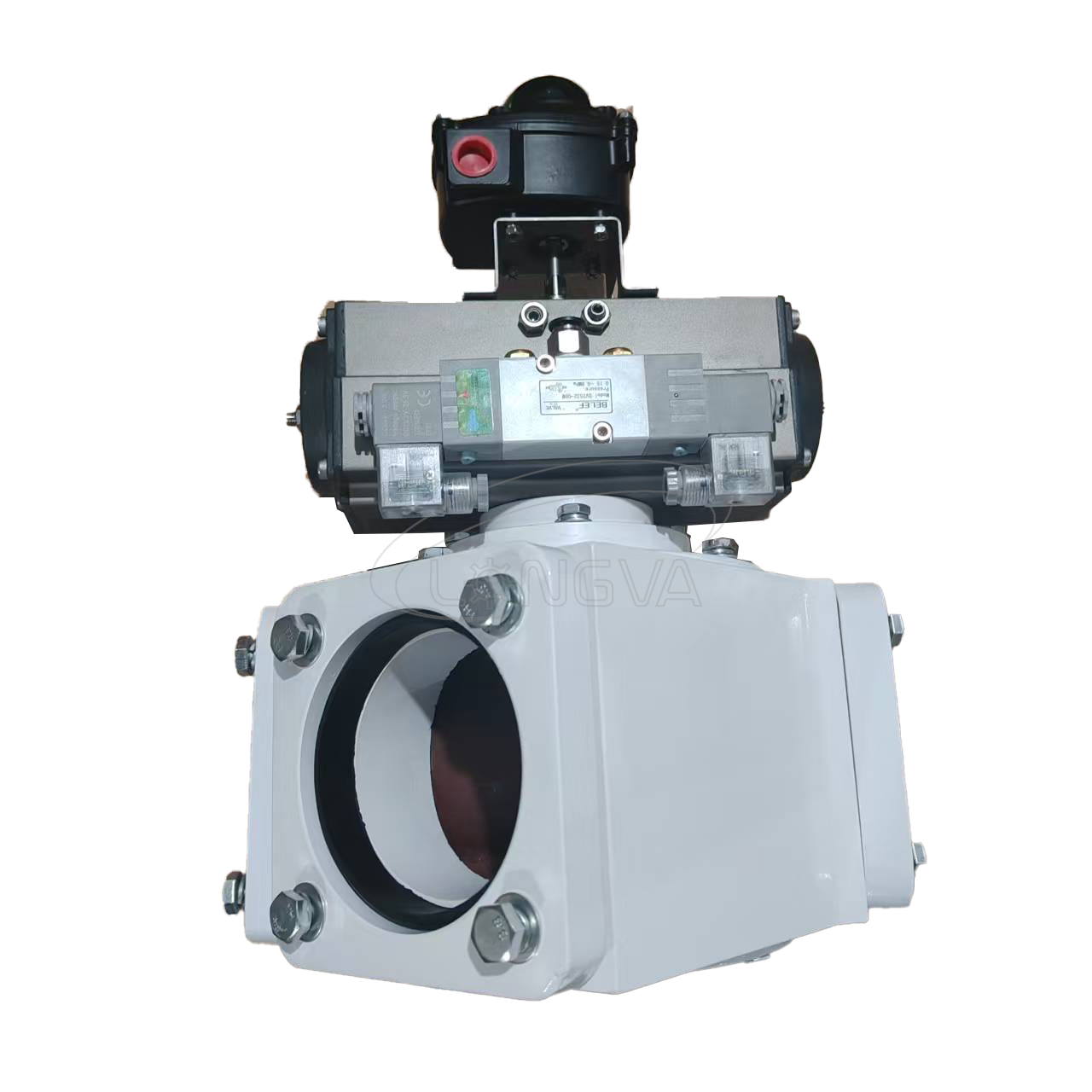

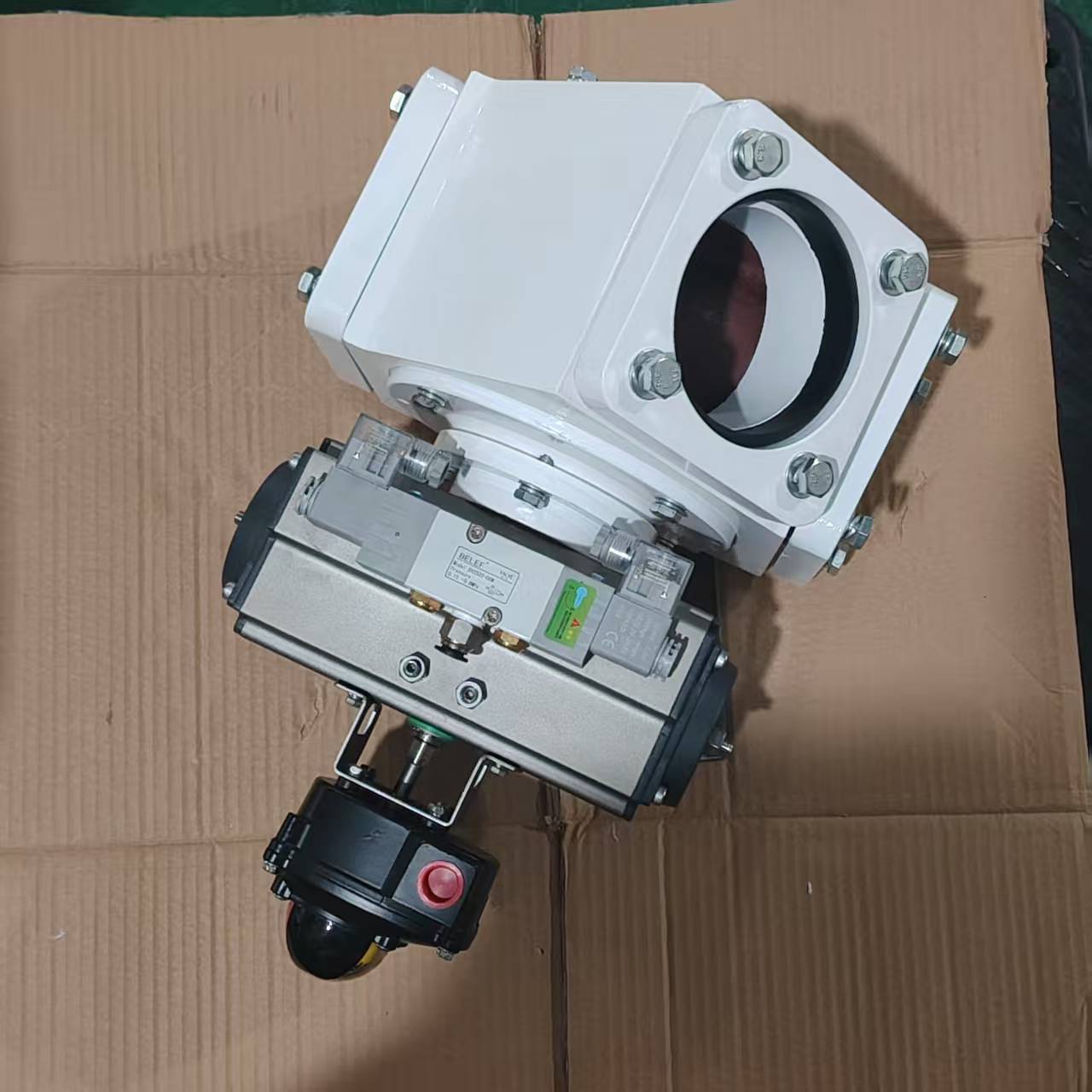

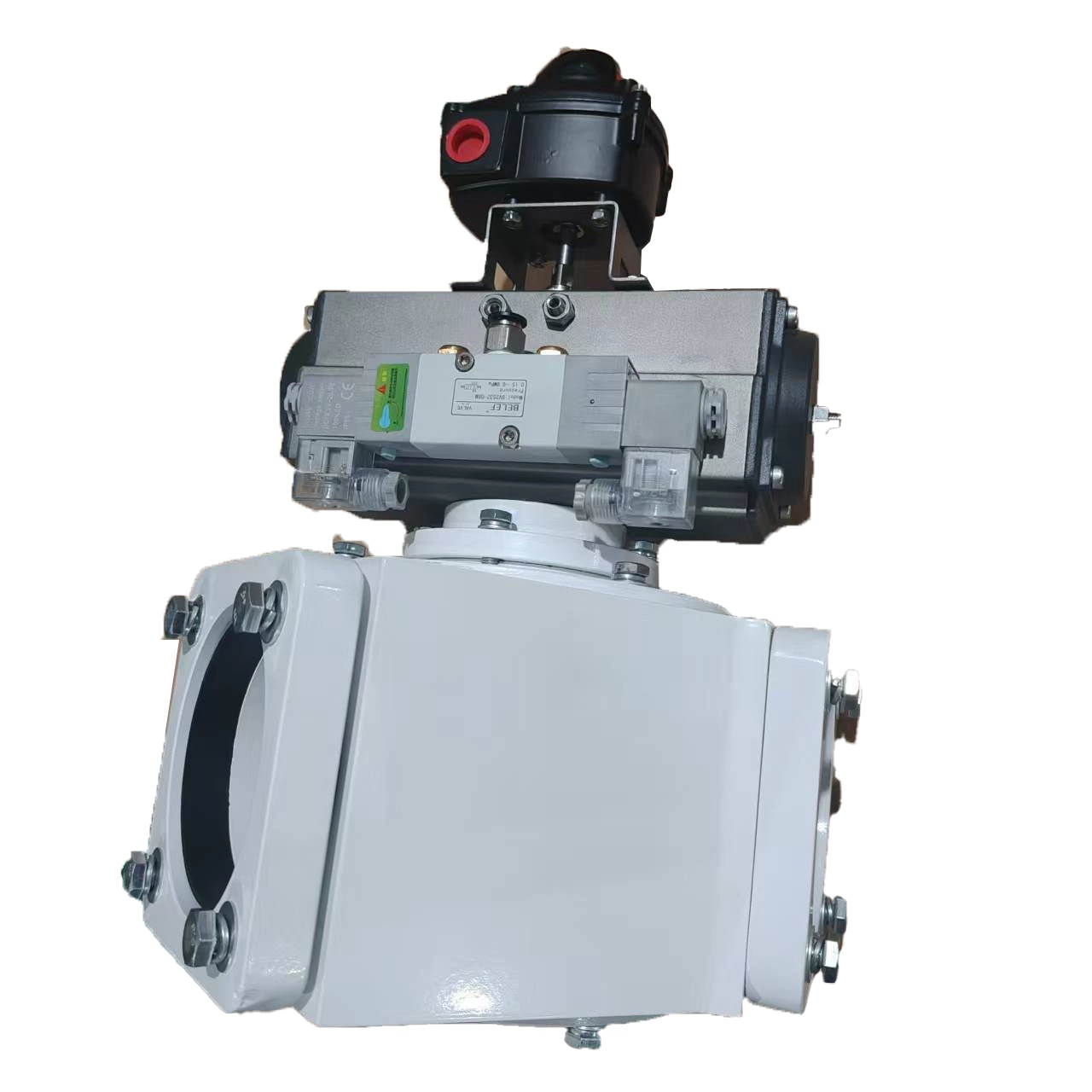

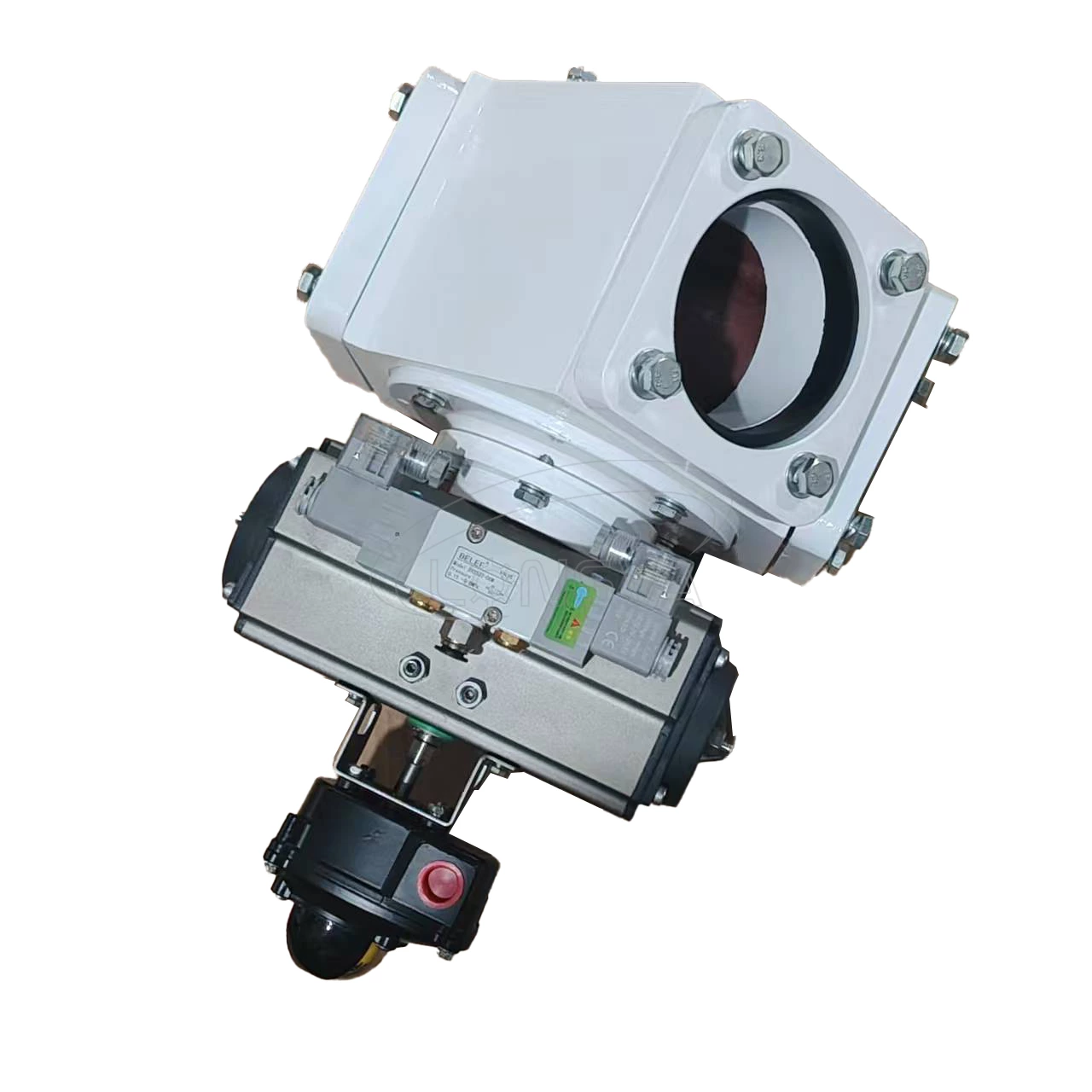

Pneumatic Plug Diverter Two Way Valve

Pneumatic Plug Diverter Two Way Valve

Body Material: Cast aluminum alloy / SS304 stainless steel optional

Actuator: Pneumatic actuator with limit switch position feedback

Connection: Square flange connection, wear-resistant PU liner sealing

Size: DN80-DN300 in stock, custom bore size available

Working Principle: 90° plug rotation for two-way material diversion, dust-tight sealing

Advantage: Smooth flow channel without material accumulation, long service life; fast automatic switching, easy disassembly & maintenance

Application: Grain, feed, plastic pellets, lithium powder, chemical powder pneumatic conveying diversion system
