Vacuum Elbow-Tee-Reducer

Vacuum Tee

Stainless Steel Vacuum Tee KF vacuum fittings and flanges consist of two flanges coupled together by a centering ring with a O-ring and a clamp. With this kind of connection provides many advantages

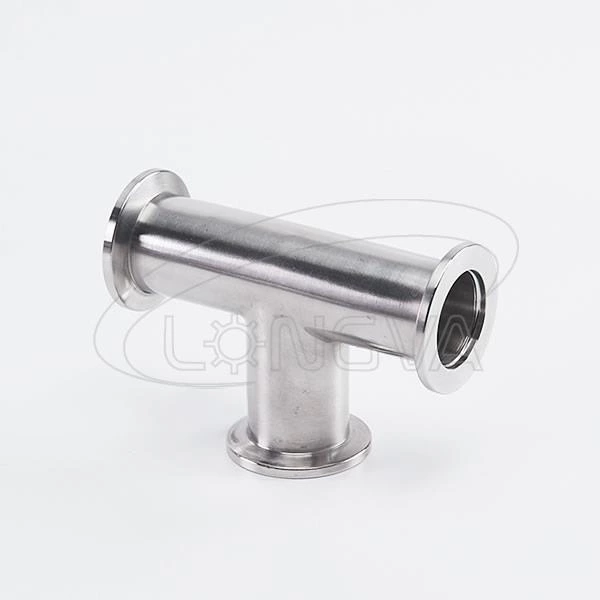

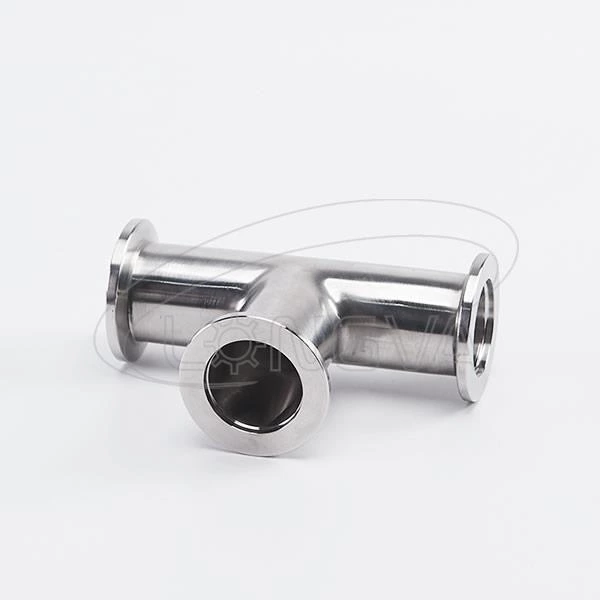

Stainless Steel Vacuum Tee

  • KF vacuum fittings and flanges consist of two flanges coupled together by a centering ring with a O-ring and a clamp. With this kind of connection provides many advantages,  such as easy and quick mounting, assembly without any tools, unlimited orientation and easy interchangeability.
  • The standard sizes for KF vacuum fittings and flanges are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50.
  • KF vacuum fittings and flanges are includes KF clamp, KF centering ring, KF o-ring, KF blank flange, KF weld flange, KF half nipple, KF full nipple, KF reducing conical, KF elbows, KF tees,  KF 4-way crosses, KF reducing tees,  KF reducing 4-way crosses, KF adaptor and KF flexible bellows.

Product Description

Size KF10~KF100
Material SS304, SS316L
Vacuum Range ≥10-8 Torr
Application Widely used in semiconductor, medical, solar photovoltaic, and other fields.

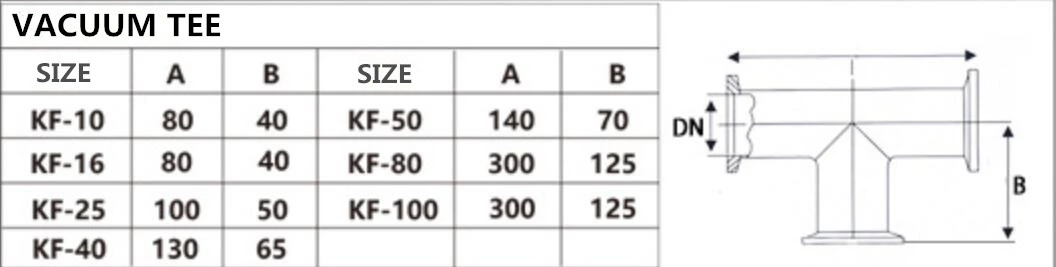

Product Parameter

Vacuum Tee
