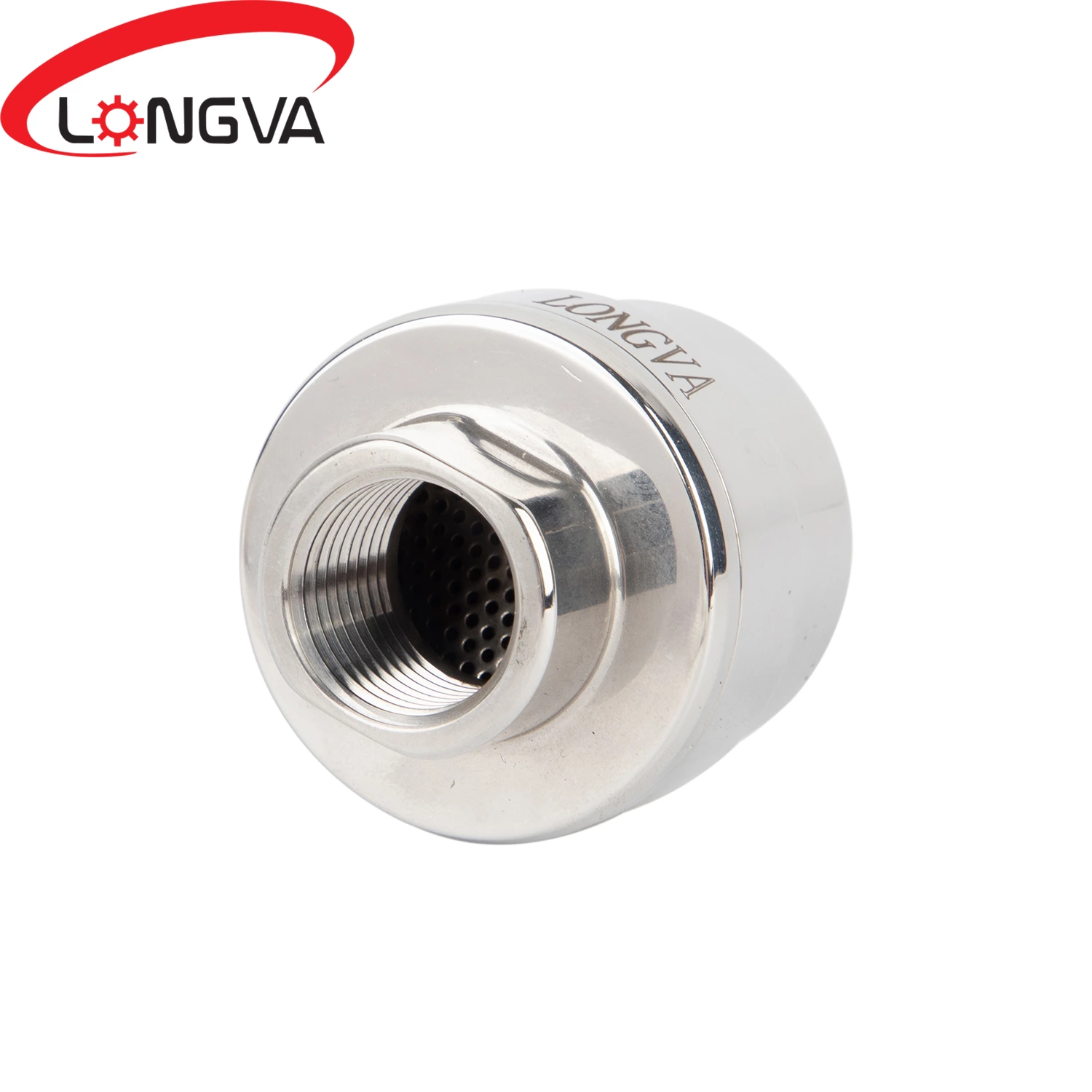

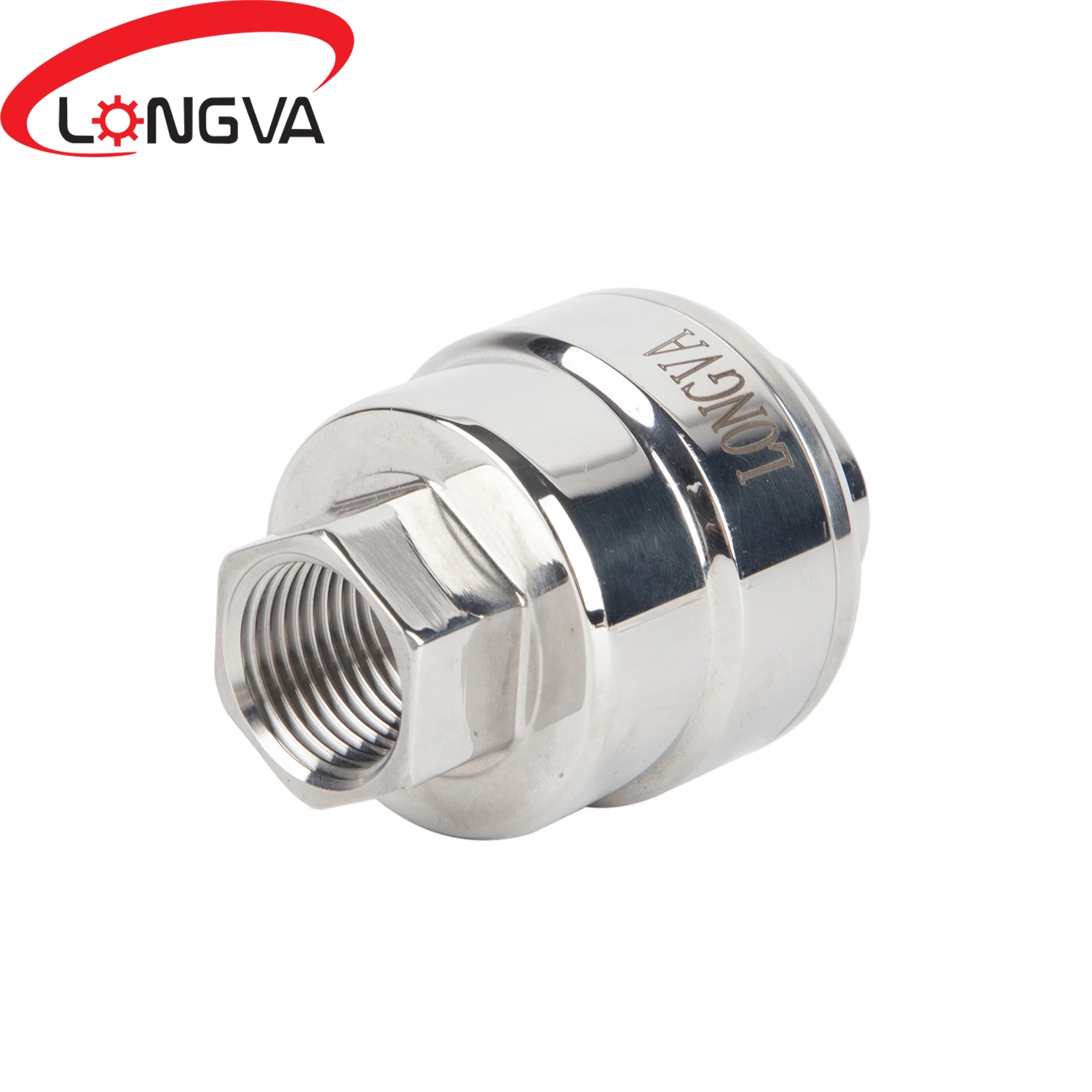

Sanitary Stainless Steel Balanced Pressure Thermostatic Steam Trap
Product Parameter
| Material | Contact with the product parts | SS316L |
| Non contact product parts | SS304 | |
| Pressure | 0-16bar | |
| Max. Working temperature | 230℃ | |
| Surface treatment | Internal surface finish | Ra≤0.4~0.8μm |
| External surface finish | Ra≤0.8μm | |
| Connection | Thread,Triclamp | |
| Standards | BSP,NPT | |
| Specification | 1/4"-2" | |

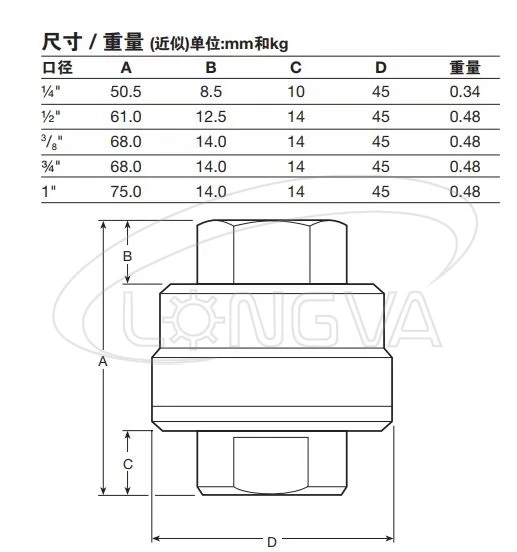

Dimensional parameters
