Specifications

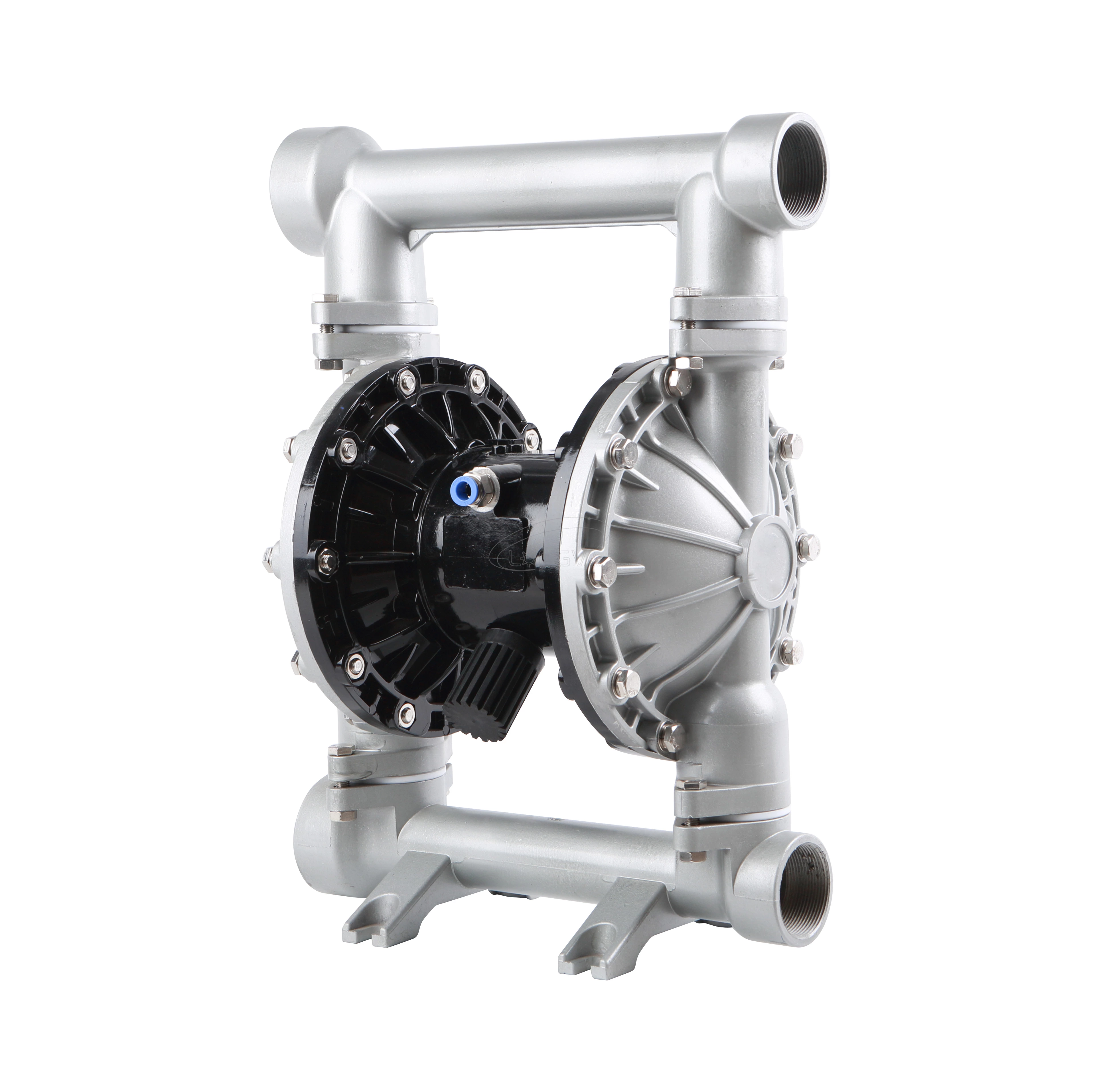

| Product Name | Sanitary Diaphragm Pump |
| Max.Flow | 15gpm |
| Max.Working Pressure | 100psi |
| Air Inlet Size | 1/4in.npt(f) |
| Max.Suction Height(dry suction) | 15ft（4.5m） |
| Max.Suction Height(wet suction) | 25ft（7.6m） |
| Max.Permitted Grain | 3/32in.（2.5mm） |
| Max.Air Consumption | 12.7scfm |
| Max.Reciprocating Speed | 400cpm |
| Pump body Structure | Cast steel,aluminum alloy,stainless steel,polypropyrene,polyvinylidene fluoride |
| Net Weight | Cast steel10KG, aluminum alloy6KG, stainless steel10KG, polypropyrene5KG, polyvinylidene fluoride5KG. |
