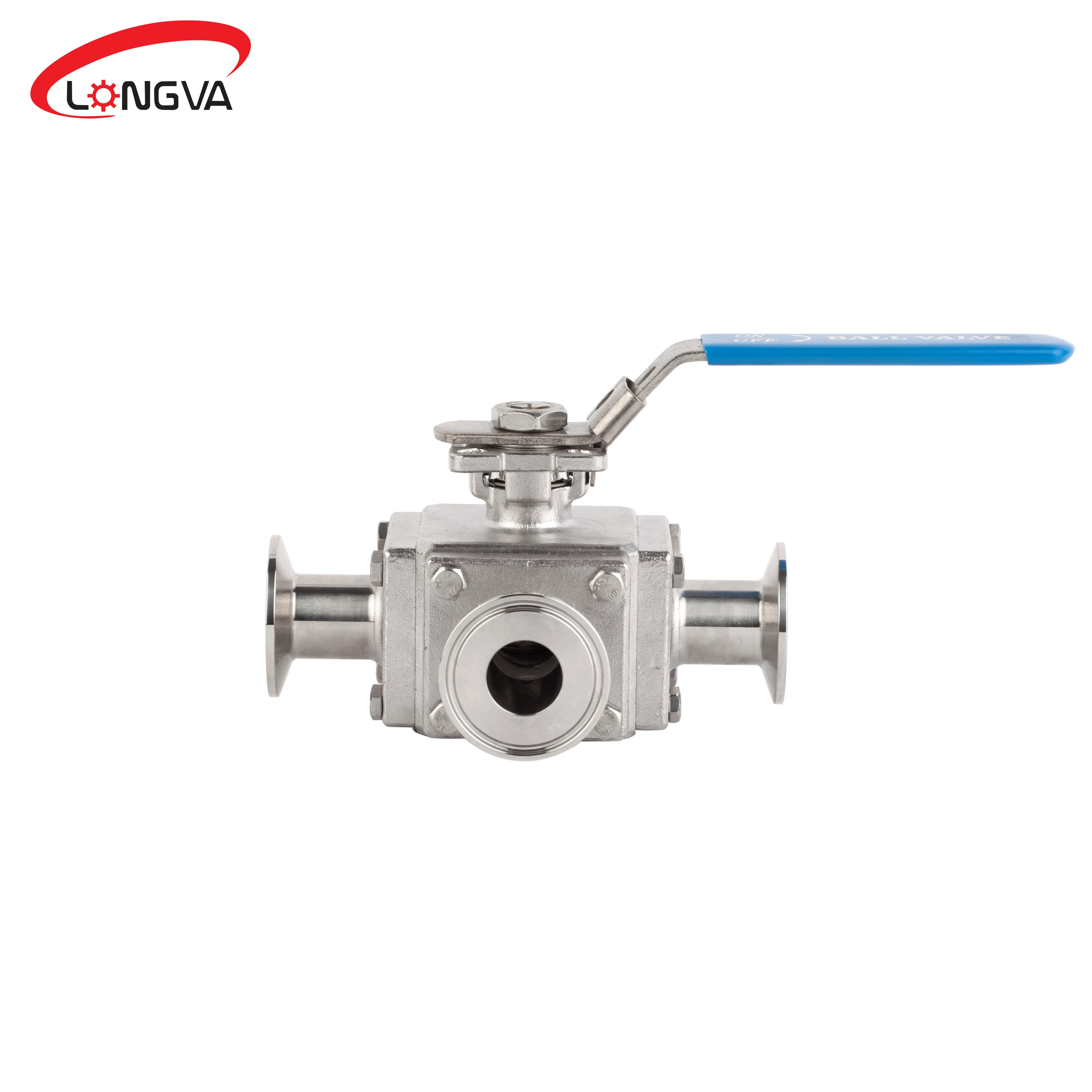

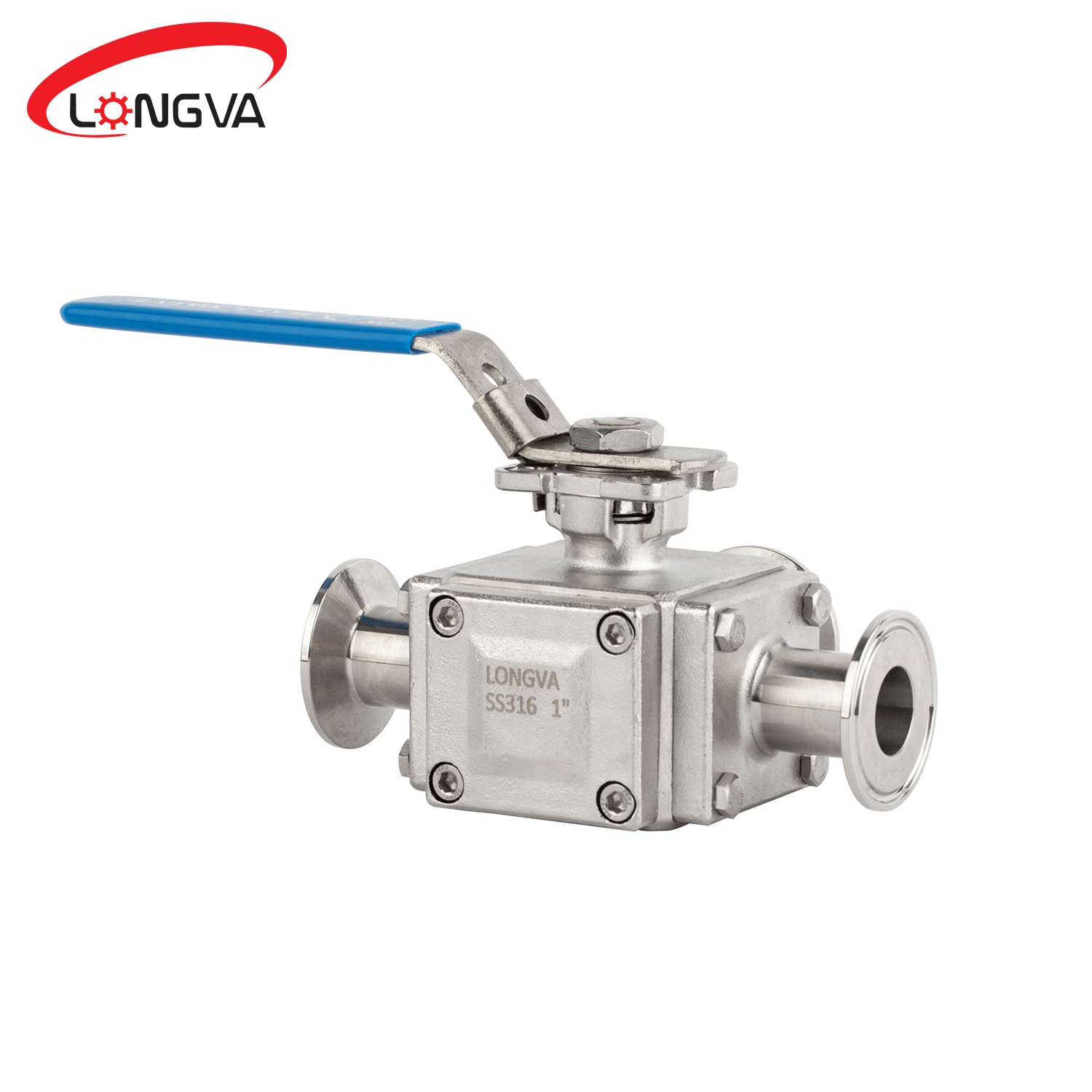

Sanitary square three-way ball valve
Product Parameter
| Material | SS304, SS316L |
| Seal | PTFE, PPL |
| Sterilisation temperature | 150°C (Max 20 min) |
| Inside surface treatment | Ra≥0.4-0.8μm |
| External surface treatment | Ra≥0.4-1.6μm |
| Connection | Welding, Triclamp, Male,Female, Flange, etc. |
Product Characteristics

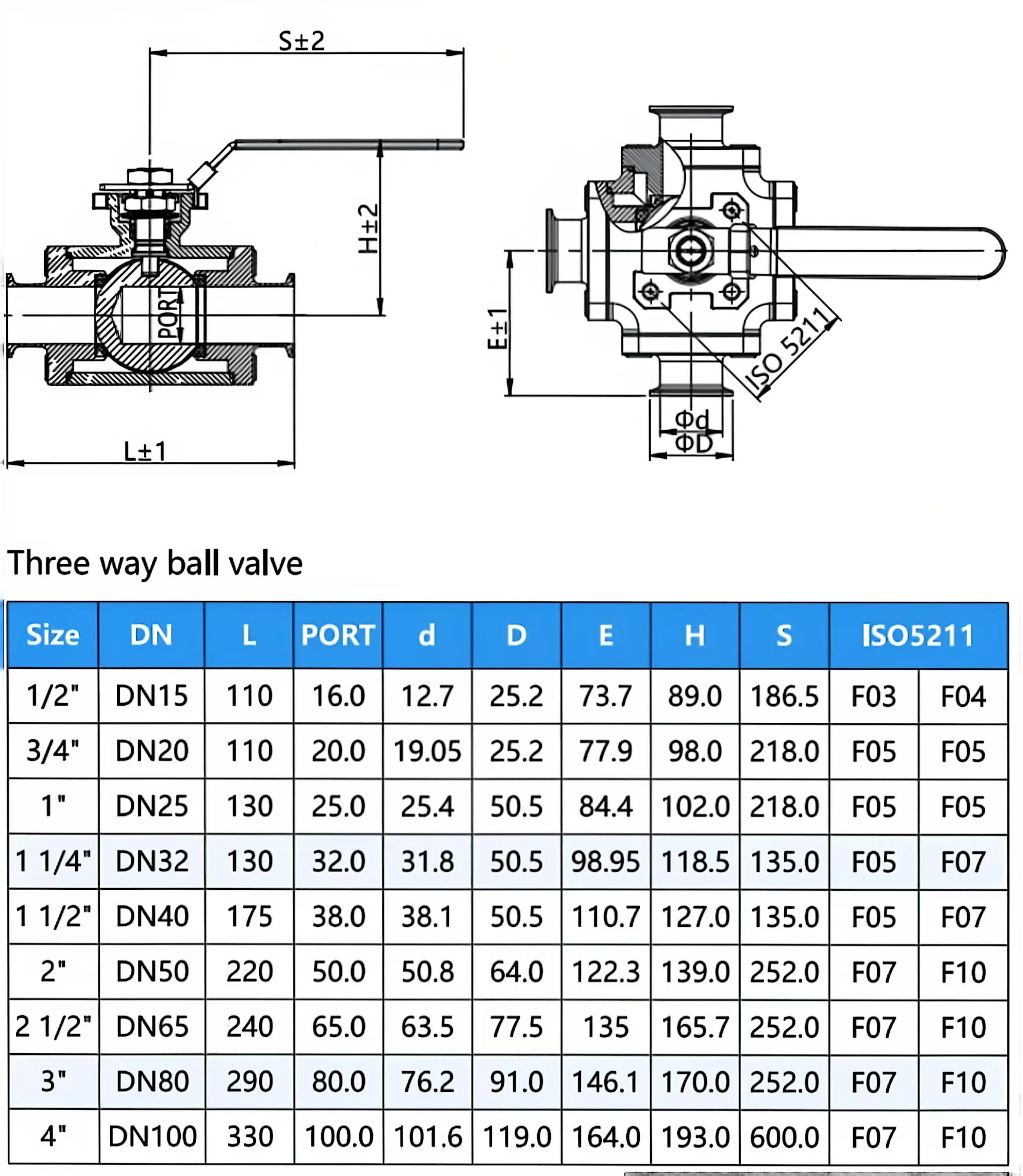

Dimensions Parameter
