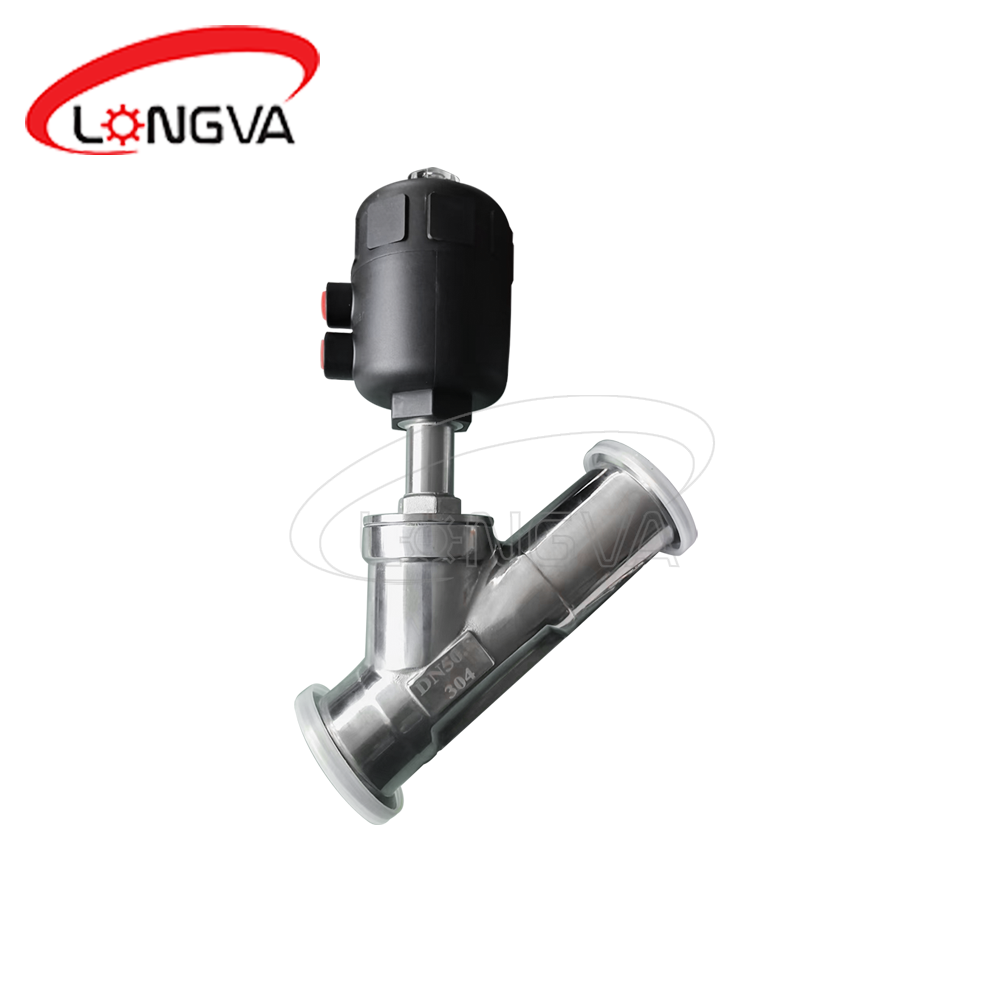

Y Type Angle Seat Valve with Clamp Ends
Material: SS304 / SS316L stainless steel body, PA pneumatic actuator
Connection: Sanitary tri-clamp end
Size: DN15-DN100 in stock, customized sizes available
Seal: EPDM, PTFE food grade sealing
Working pressure: 0-10 bar Temperature range: -10℃ ~ 180℃
Surface: Mirror polished inner surface Ra≤0.8μm, self-draining dead-space free
Advantage: Low flow resistance, fast pneumatic on-off, long service life, easy disassembly & cleaning
Application: Automatic control valve for dairy, beverage, beer, biopharma, pure water sanitary pipelines, compatible with CIP & SIP sterilization
