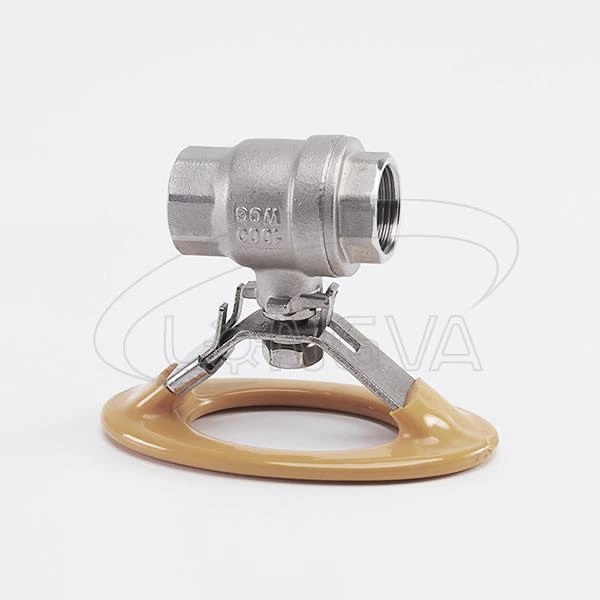

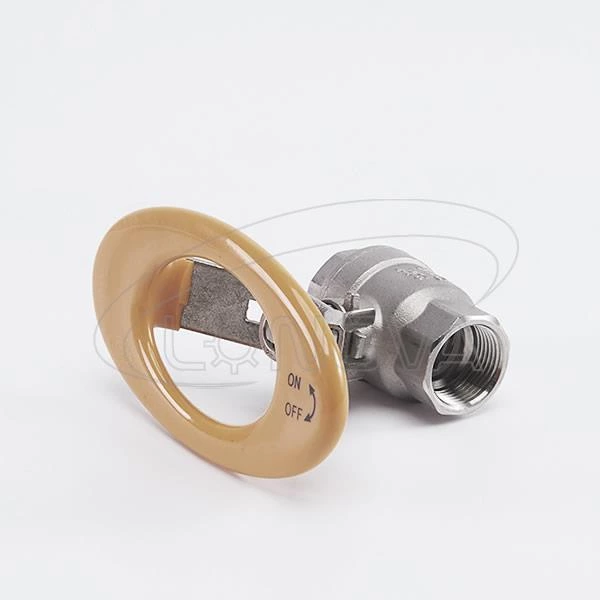

Name: Oval Handle Ball Valve
SKU: 00064
Rating: 0 (928 reviews)

Oval Handle Ball Valve

Industrial Grade Oval Handle Straight Ball Valve Ball valve is designed for food biological, pharmaceutics or similar industries. The cavity filled seat option will help not to remain the media in t

Industrial Grade Oval Handle Straight Ball Valve

Ball valve is designed for food biological, pharmaceutics or similar industries. The cavity filled seat option will help not to remain the media in the body cavity to keep from spoiling or mixing. Cavity filler seats will also help to clean the valve port easily.
Maintenance free
Smaller and lighter than other valves
Operating torque is small
Can be equipped with pneumatic actuator, eletric actuator

Product Description

Body Material	SS304, SS316, WCB
Handle Type	Straight type handle, Oval type handle
Seal Material	PTFE
Normal Pressure	PN1.6, 2.5, 4.0, 6.4MPa
Working Temperature	-29~180℃
Size	1/4"~4", DN8~DN100
Connection end	Thread (Male or Female)
Medium	Water, Oil, Gas
Application scope	Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
