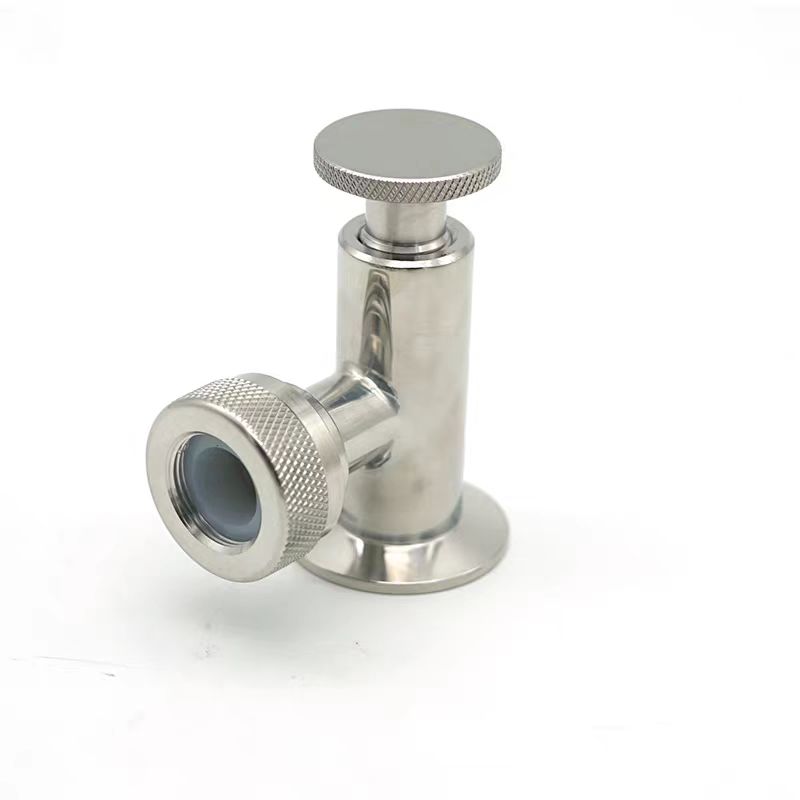

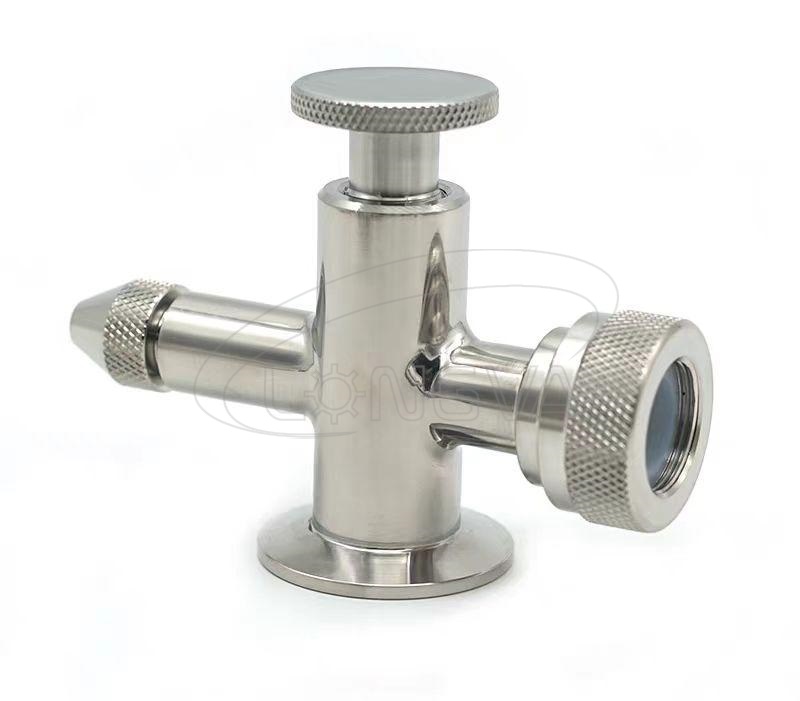

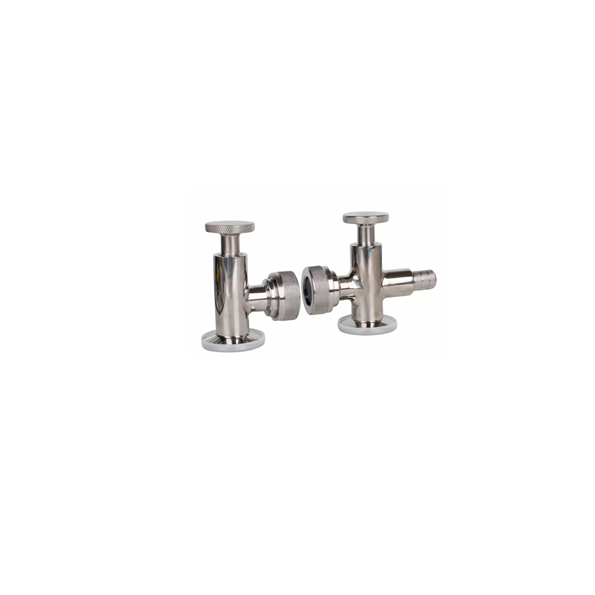

Product Name: Sanitary Level Gauge Valve The level gauge is mainly applied to the tank equipment. The two same gauges or two different gauges are assembled on the tank so that the liquid condition or
The level gauge is mainly applied to the tank equipment. The two same gauges or two different gauges are assembled on the tank so that the liquid condition or capacity can be observed and the sample can be extracted. Constructed from hygienic stainless steel.
| Connection Size | 1/4",3/8",1/2",3/4" |
| Connections | thread, clamp, weld |
| Body Material | AISI 316L |
| Temperature | -10°C to 120°C |
| Max pressure | 145PSI(10 BAR) |
| Seal | PTFE(FDA approved) |
